floor stanidng island lab bench

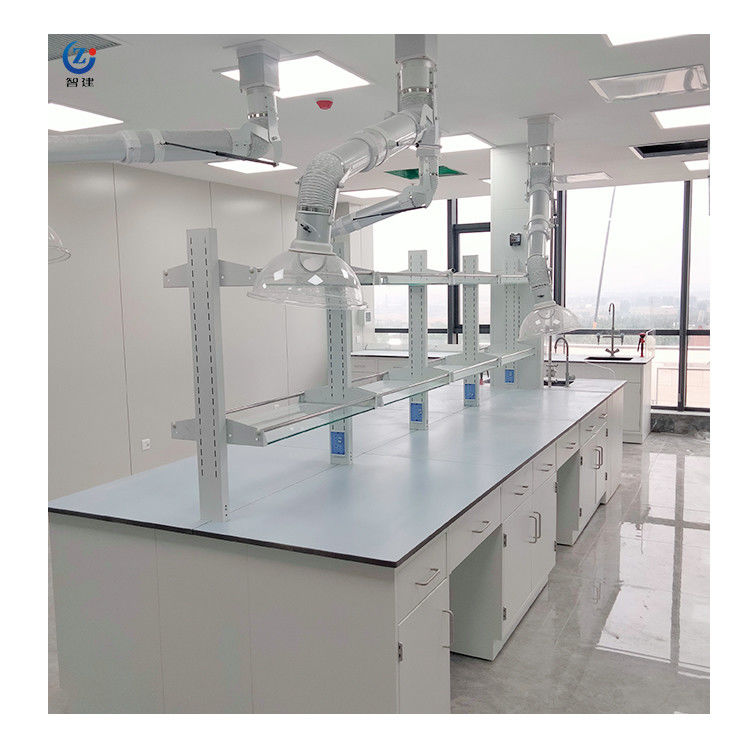

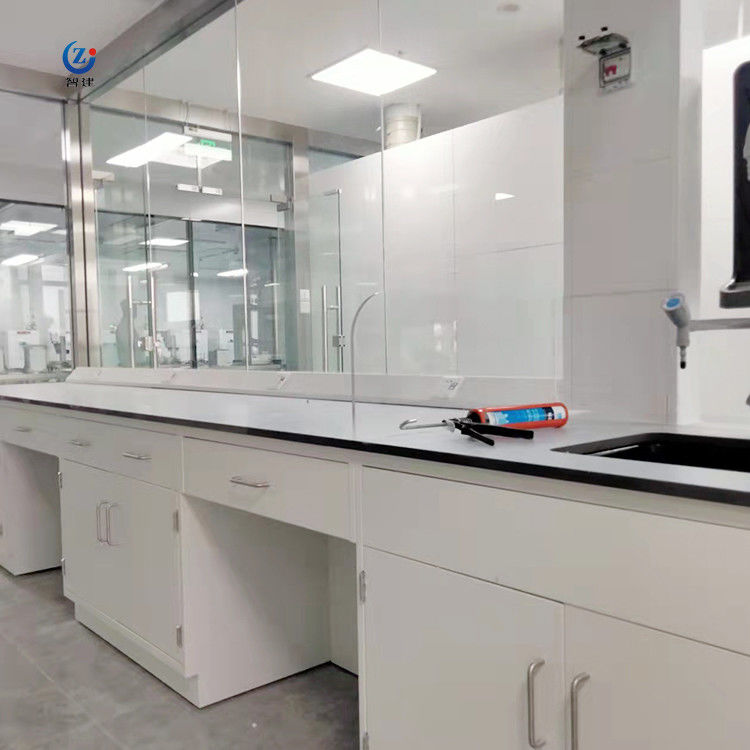

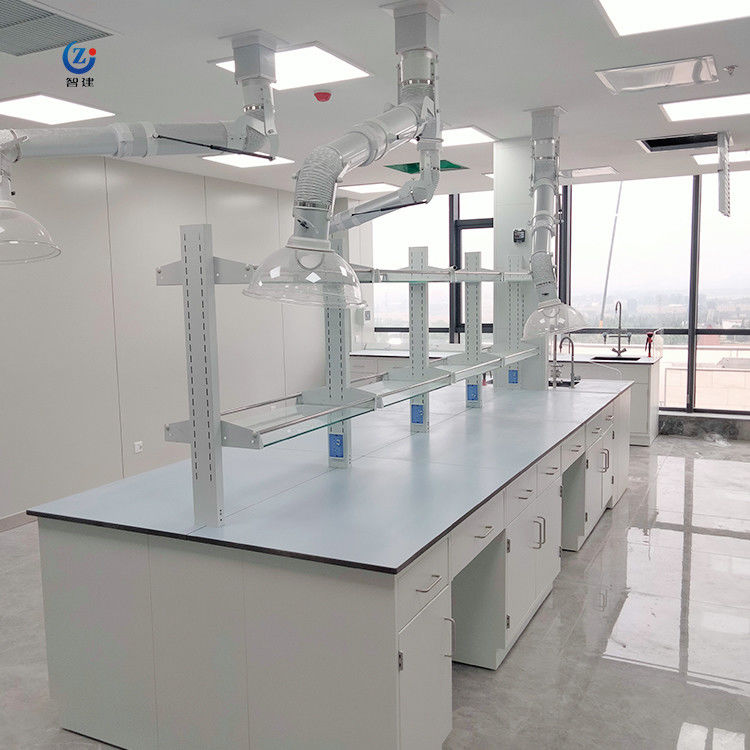

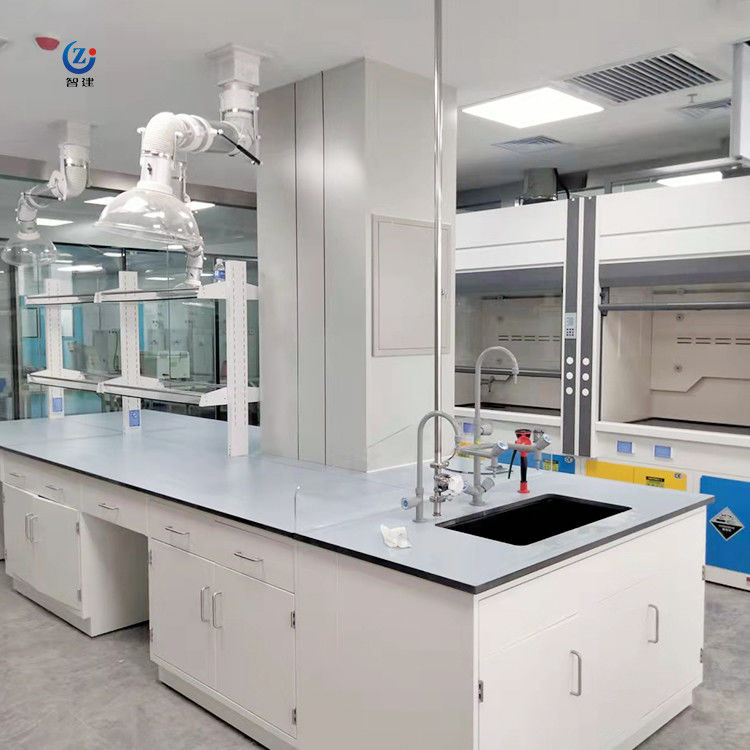

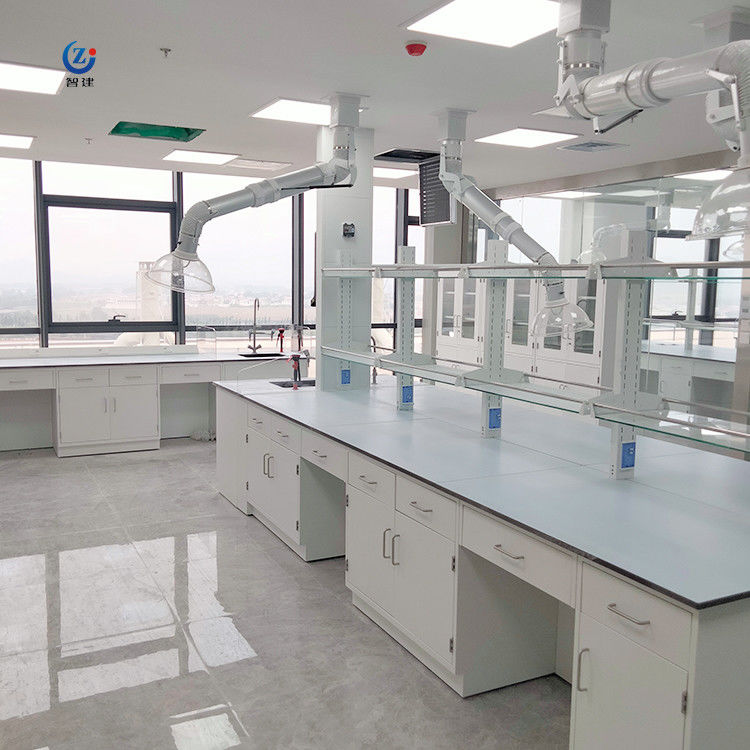

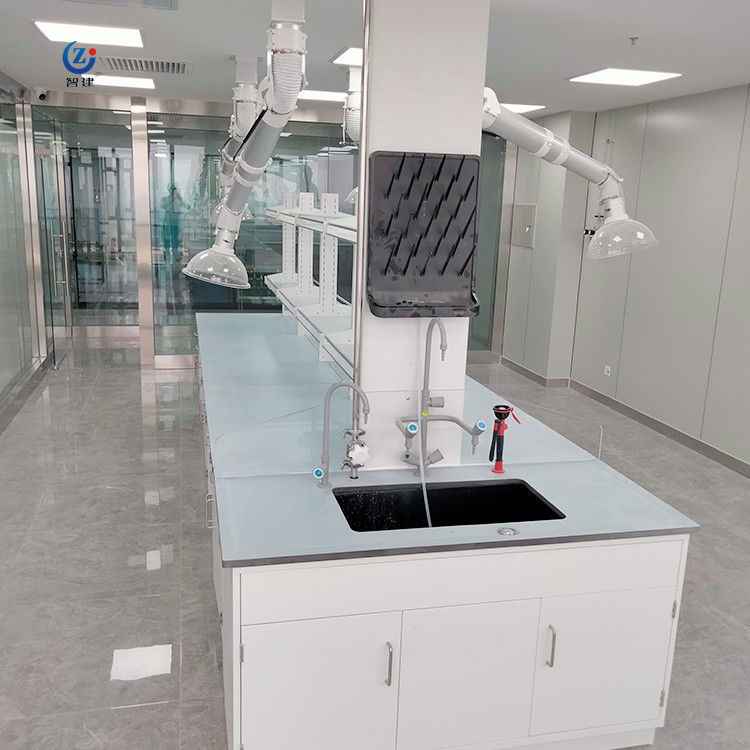

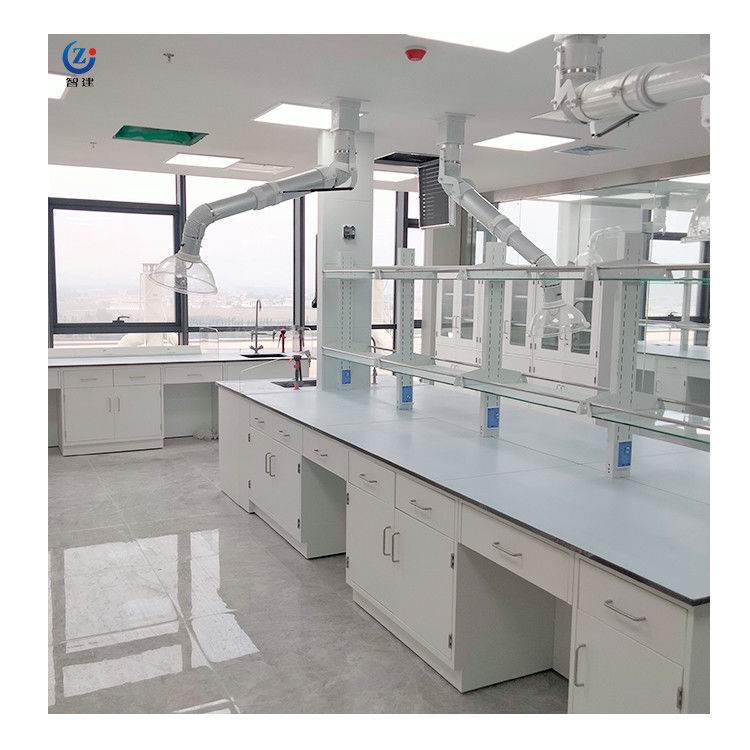

ISLAND LAB BENCH
The Floor Mounted Lab Bench is cabinet units support countertop, and the cabinet unitsare fixed by connecting rods.
This kind of structure has good load-bearing performance, and the load-bearing capaci-ty can reach 500KG/m,
which can meet the use requirements of large-scale precisioninstruments&equipment in the laboratory.
Cabinet unit is in direct contact with the ground to prevent dust from entering thebottom of the workbench,
which is the first choice for dust-free laboratories.
Remarks:
The Floor Mounted Lab Bench is only suitable for all-steel cabinet units. lfuse wooden cabinet units, it will be expanded and deformed when it touches the dampground.
ADVANTAGE
a.Durable
b.High cost performance
c.More storage space
d.Easy to install
e.Good load-bearing performance and excellent stability. Bearing up to 500KG/m2
| Counter tops: | Phenolic/Epoxy resin board/Ceramic/Stainless seel / Trespa/Granite /Msrble |
| Colour: | Grey,blue.yellow,black white etc |
| Dimension: | L*1500/750(W)*800/850mm(H) or customizable |
| Structure | C-Frame/H-Frame/Floor Mounted (PLS SEE THE BELOWPHOTO FOR YOUR REFERENCE) |
| Material | steel woden, all seel, 304 stsinless steel, PP (PLS SEE THE BELOWPHOTO FOR YOUR REFERENCE) |
| Base cabinet: | Option ① wooden cabinet Option ② steel cabinet |
| Handle | Non-welded linear handle/C-shared handle/ insertion aluminum alloy handle |
| Rail | DTC 16-INCH THREE SECTION SILENT RAIL |
| Hinge | DTC 105'/175' buffer hinge/stsinless steel hinge |
| Reagent racks: | Frame:40*60*100mm cold-rolled steel costed with epoxy resin powder.with 12mm thick adjustalbe glass shelf |
| Faucet | Brass body with ceramic valve core, coating with epoxy powder coating |
| Sink: | PP sinkceramie sink epoxy resin sink |
| Socket | Multi-Functional with splash-proof box and safeguard cover or customized |
| Applied range | Goverment, hospital, school, industry lab ete |
| Server type | OEM & ODM |
| name | Ceramic | Epoxy resin board | Pheno lic |
| photo | |
|
|
| Composition | Natural Silicate | Epoxy resin, silica, hardener, pigment |
Chemical resistant film, overlay paper, deco paper, Kraft paper |
| Max. Long term Heat Resistance |
800°C | 300°C | 135°C |
| Chemical Resistance |
Strong resistance against solvents. bases. oxidants and most acids |
Strong resistance against solvents. bases, and most oxidants |
Strong resistance against solvents. oxidants. and many acids |
| Chemical Weaknesses |
Hydrofluoric acid | ulfuric acid. nitr ic acid. hydrofluoric acid, potassium oermanganate |
Sulfuric acid, nitric acid, sodium hydroxide |
