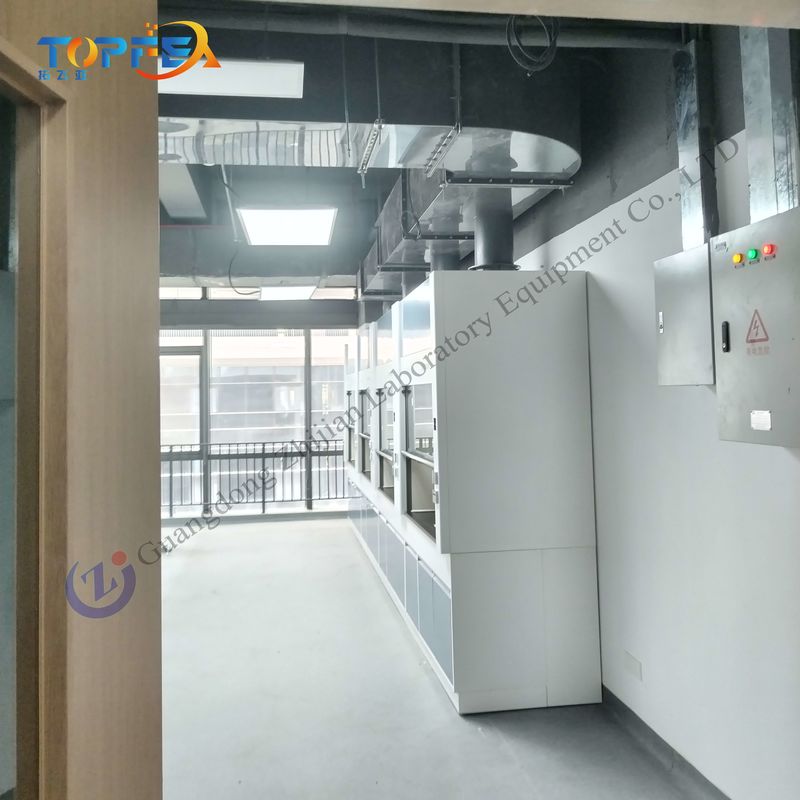

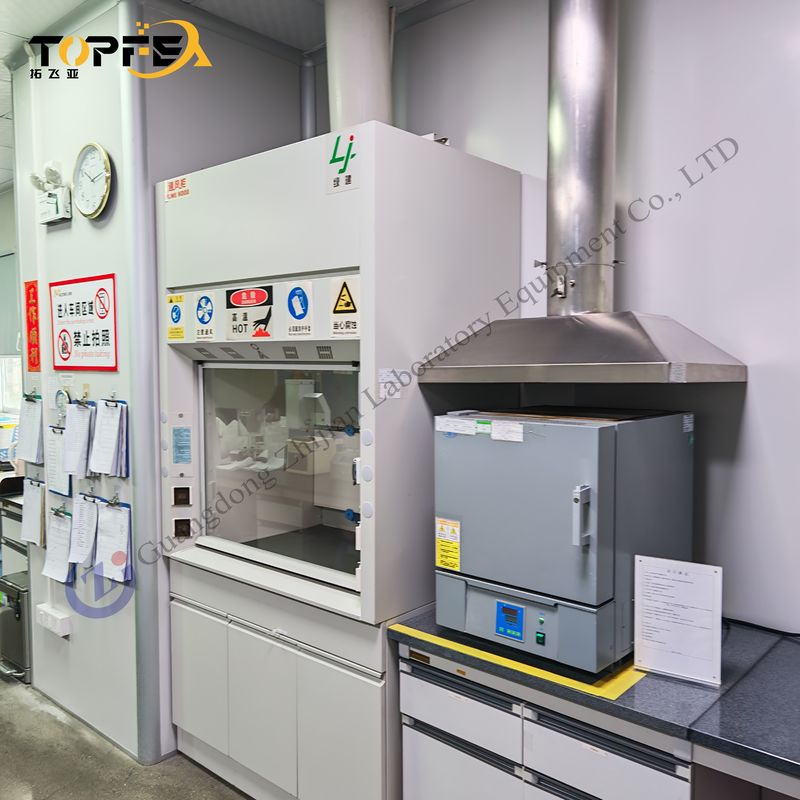

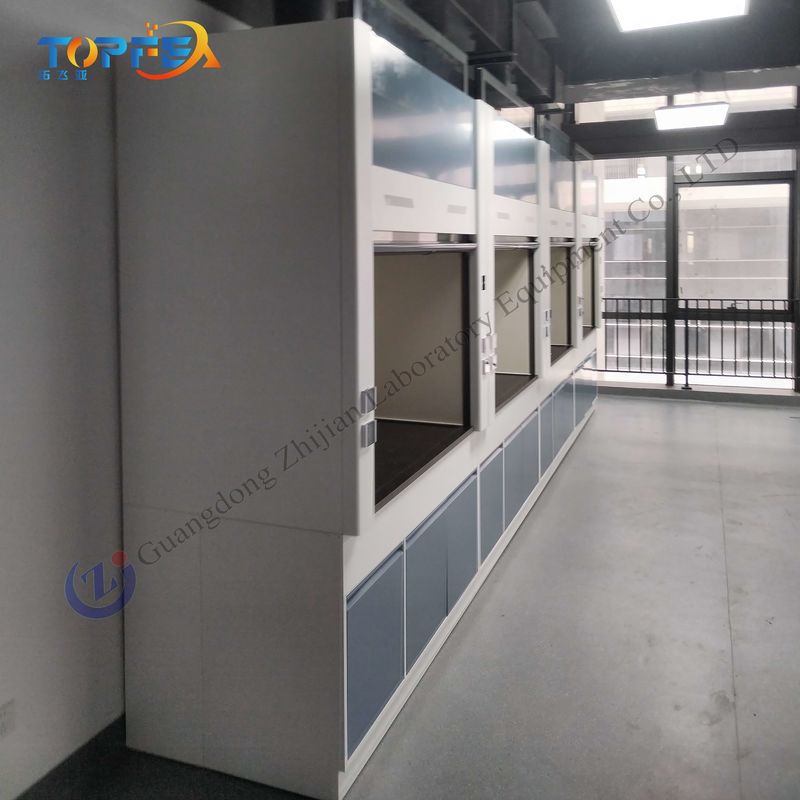

A laboratory fume hood is a crucial device used in laboratories to control harmful gases, vapors, dust, or aerosols, designed to protect both laboratory personnel and the environment.
The Structure
Cabinet: The cabinet is typically constructed using corrosion-resistant materials such as stainless steel or polypropylene, ensuring chemical resistance.
Front Window: The front window is made of clear glass that can move up and down, making it easy to operate while preventing harmful substances from leaking out.
Work Area: The work area inside the fume hood provides space for laboratory equipment and chemicals, equipped with outlets, air valves, and other necessary facilities.
Exhaust System: The fume hood is connected to an external exhaust duct to effectively discharge harmful gases outside the laboratory.
Security protection
Control of hazardous substances: Effective control of hazardous gases, vapors, dusts and aerosols to prevent their diffusion into the laboratory environment.
Operator protection: Through the front window and air flow system, the experimental personnel are protected from direct contact with harmful substances.
Air flow control
Stable air flow: Adjust the wind speed through the front window opening to ensure that harmful substances are effectively discharged.
Negative pressure environment: Maintain negative pressure in the cabinet to prevent harmful substances from leaking out.
Exhaust system
Efficient exhaust: harmful gases are discharged outdoors through the exhaust system or recycled after filtration.
A variety of exhaust modes: including ducted (pipe exhaust) and ductless (no pipe filtration) two main types.
Material parameters
Cabinet material:
Cabinet material is made of corrosion-resistant materials such as stainless steel, polypropylene, and epoxy to ensure durability. These materials offer excellent chemical corrosion resistance that meets the experimental requirements.
Front window material:
The front window is made of safety glass or polycarbonate, providing impact and chemical resistance for added safety.
Lining material:
The interior lining is made of acid and alkali resistant, high temperature resistant material that is easy to clean, ensuring a suitable environment for experiments.
Electrical parameters
Power supply configuration:
The power supply supports both 220V and 110V options, operating at 50/60 Hz. It is equipped with a built-in explosion-proof socket that complies with electrical safety standards.
Lighting:
The cabinet features LED lighting that offers uniform brightness and low energy consumption. The lighting intensity is set at a minimum of ≥500 lux to ensure clear visibility during experimental operations.
Control system
Wind speed control:
The airflow within the cabinet can be manually or automatically adjusted for surface wind speed. An integrated wind speed sensor and alarm system are included to maintain stable airflow.
Variable Air Volume (VAV) control:
The cabinet is equipped with a Variable Air Volume (VAV) control system that automatically adjusts the exhaust air volume based on the position of the front window. This energy-saving feature ensures high efficiency in operation.
Chemical experiments involve handling volatile chemicals, which can be hazardous if not managed properly.
In biological experiments, it is crucial to take steps to prevent biological contamination to maintain the integrity of the results.
When it comes to pharmaceutical work, controlling dust and harmful gases is essential to ensure the safety of both the products and the individuals involved in the process.
Product Customization Services for the Steel Fume Hood:
Brand Name: TOPFEA
Model Number: TFFH001
Place of Origin: Guangdong of China
Certification: ISO
Minimum Order Quantity: 1PCS
Price: USD800~1200
Packaging Details: Carton/Wooden case
Delivery Time: 15~25days
Payment Terms: TT, LC
Supply Ability: 1000PCS per month
Safety Features: Yes
Product Name: Steel Fume Hood
Material: Steel
Durability: High
Color: White, Blue, Grey, Black Or Customized
Keywords: Air Purifying Hood, Chemical Fume Absorber, Fume Extraction Hood
Product Packaging:
The Steel Fume Hood will be carefully packed in a sturdy cardboard box with ample cushioning to prevent any damage during transit.
Shipping:
Once your order is processed, the Steel Fume Hood will be shipped via a reliable carrier service. You will receive a tracking number to monitor the delivery status of your package.
Q: What is the brand name of this Steel Fume Hood?
A: The brand name is TOPFEA.
Q: What is the model number of this Steel Fume Hood?
A: The model number is TFFH001.
Q: Where is the Steel Fume Hood manufactured?
A: The Steel Fume Hood is manufactured in Guangdong of China.
Q: What certification does this Steel Fume Hood have?
A: This Steel Fume Hood is certified with ISO.
Q: What are the payment terms for purchasing this Steel Fume Hood?
A: The payment terms are TT (Telegraphic Transfer) and LC (Letter of Credit).
