Place of Origin:
Guangdong of China
Brand Name:
TOPFEA
Certification:
ISO
Model Number:
TFWB001
Contact Us
Video

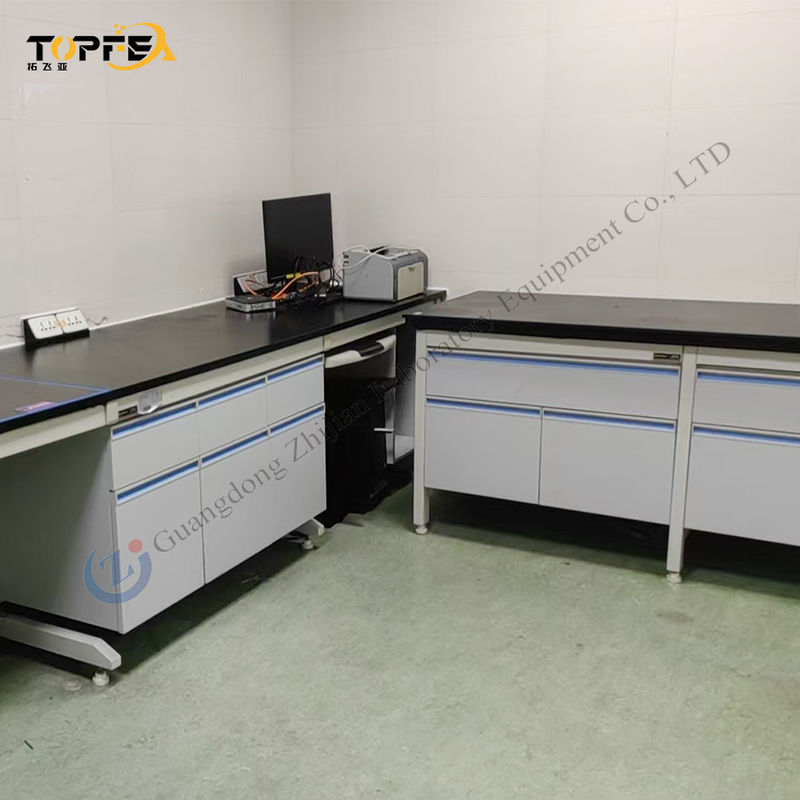

The Laboratory wall Bench serves as the central working platform within the laboratory, dedicated to facilitating experimental procedures and deploying various instruments and apparatuses.
It fulfills several key functions, including:
Frame: It is usually made of metal (such as cold-rolled steel, aluminum alloy) or all-wood structure, and the surface is treated with anti-corrosion spraying.
Cabinet door/drawer: Dust-proof design, may be equipped with a lock, used for storing instruments, consumables or dangerous goods.
The main features of the experimental side bench:
Basic functions:
Provide an experimental operation plane to support conventional experiments (such as titration and sample preparation).
The lower cabinet or shelf is used for storing laboratory supplies (glassware, reagents, etc.).
Extended function:

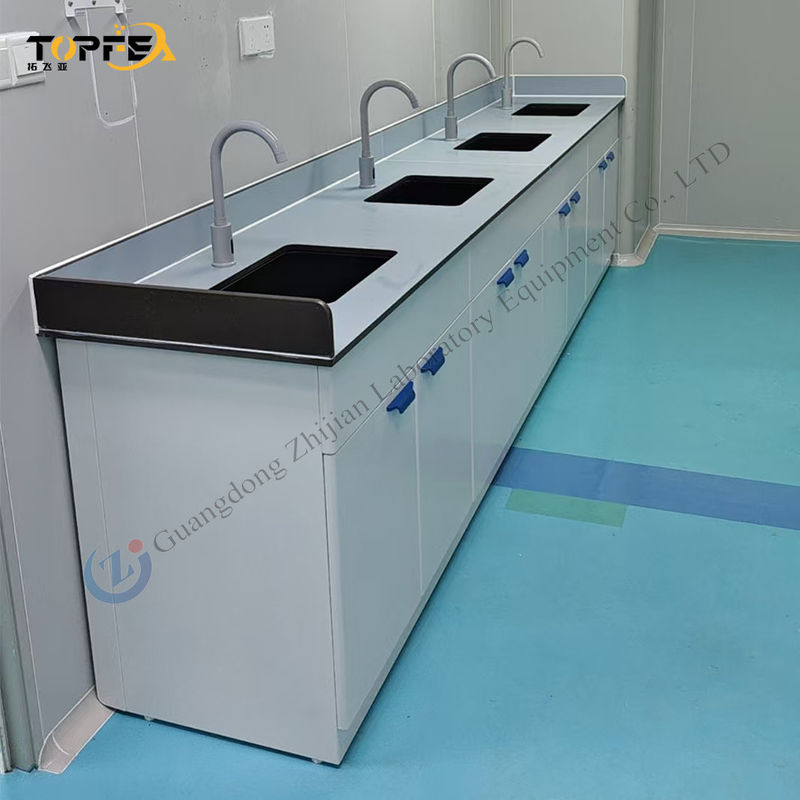

Integrated accessories: Can be matched with sinks, faucets, gas valves, power sockets or exhaust devices.
Modular design: Some side tables can be moved or their height adjusted to meet different experimental requirements.
The height ranges from 850mm to 900mm, which is ergonomic. Customized lifting models are available (such as adjustable from 800 to 1000mm).
The depth is 600mm to 800mm. The standard depth is 600mm. When large equipment needs to be placed, it can be deepened to 800mm.
The length of each section ranges from 1200mm to 1800mm, with modular splicing. The total length is designed according to the layout of the laboratory.
The clear height of the cabinet body is ≥650mm to ensure the placement space for equipment (such as centrifuges).
Countertop: It needs to pass the following tests (taking epoxy resin as an example) :
There was no color change or swelling after 24 hours of contact with the reagent (test reagents: 37% hydrochloric acid, 68% nitric acid, etc.).
Cabinet coating: Salt spray test ≥500 hours (ASTM B117 standard).
The lab wall bench finds wide applications across various fields including scientific research, education, medical care, and industry.
1. Chemical laboratory application
2. Application in biological laboratories
3. Applications in physics/Electronics laboratories
4. Medical/clinical laboratory applications
5. Application in teaching laboratories
6. Application in industrial/quality inspection laboratories
Collaborative application with other devices:
In coordination with the fume hood: The side table extends the operation space of the fume hood to place the samples to be processed.
Linkage with the central station: Form shaped circulation route to enhance experimental efficiency.
Integration with intelligent systems: Embedded in iot modules to achieve remote monitoring (such as temperature and humidity alarms).
Product Name: Lab Wall Bench
Description: Our Lab Wall Bench is a sturdy and space-saving solution for laboratory workspaces. It is designed to be mounted on the wall, providing ample work surface while maximizing floor space.
Packaging: The Lab Wall Bench is carefully packaged in a durable cardboard box to ensure safe delivery.
Shipping: We offer fast and reliable shipping options to deliver the Lab Wall Bench directly to your laboratory. Shipping fees may vary based on location and delivery speed.
Q: What is the brand name of this Lab Wall Bench?
A: The brand name is TOPFEA.
Q: What is the model number of this Lab Wall Bench?
A: The model number is TFWB001.
Q: Where is this Lab Wall Bench manufactured?
A: It is manufactured in Guangdong, China.
Q: What is the minimum order quantity for this Lab Wall Bench?
A: The minimum order quantity is 2 meters.
Q: What are the accepted payment terms for purchasing this Lab Wall Bench?
A: The accepted payment terms are TT (Telegraphic Transfer) and LC (Letter of Credit).
