Name: 304 Stainless Steel Lab Fume Hood with All Steel Construction and Customizable Size for Chemical Institutes
Brand: Guangdong Zhijian Experimental Equipment Technology Co., Ltd.
Price: 50.00 USD
Availability: InStock

Home > Products > Lab Fume Hood >

304 Stainless Steel Lab Fume Hood with All Steel Construction and Customizable Size for Chemical Institutes

304 Stainless Steel Lab Fume Hood

All Steel Lab Fume Hood

Customizable Size Lab Fume Hood

Place of Origin:

Guangdong, China

Brand Name:

ZhiJian

Request A Quote

304 Stainless Steel Lab Fume Hood with All Steel Construction and Customizable Size for Chemical Institutes

Product Details

Material:

304 Stainless Steel

Worktop Material:

12.7mm Solid Core Physical And Chemical Board

Lining Material:

5mm Thick Compete Board

Window Glass:

5mm Tempered Glass

Face Wind Speed:

0.3-0.5m/s

Noise Level:

<60 DB

Illumination:

12W Fluorescent Lamp X1

Exhaust Volume Max:

2074m3/h

Exhaust Volume Min:

180m3/h

Safe Opening Size:

750mm

Work Open Max:

600mm

Work Open Min:

150mm

Physical Dimension:

1800*800*2350 Mm

Work Surface Size:

1550*645 Mm

Deflector Design:

Rivet-free, Adjustable Angle

Payment & Shipping Terms

Minimum Order Quantity

Price

$900-1,100

Explosion Proof Lab Fume Hood with Customizable Size and All Steel Construction for Safe Chemical Handling

Get Best Price

All Steel Construction Lab Fume Hood with Customizable Size and Floor-mounted Design for Chemical Labs

Get Best Price

Acid Digestion Fume Hood with Base Cabinet and All Steel Construction for Lab Safety

Get Best Price

Polypropylene Chemical Resistant Fume Hood with 220V 10A Sockets and 1685m3/h Exhaust Volume

Get Best Price

86-757-87823582

394419557@qq.com

86-757-87823582

Contact Now

Product Description

Laboratory Ventilation Equipment - All Steel Chemistry Lab Fume Hood

Professional Customized Fume Hood Specifications

Parameter	HT1200 Model	HT1500 Model	HT1800 Model
Physical Dimensions (L×W×H) mm	1200×800×2350	1500×800×2350	1800×800×2350
Work Surface Size	950×645	1250×645	1550×645
Exhaust Volume (Max Opening)	1296 m³/h	1685 m³/h	2074 m³/h
Exhaust Volume (Work Opening)	1080 m³/h	1404 m³/h	1728 m³/h
Exhaust Volume (Min Opening)	180 m³/h	234 m³/h	280 m³/h
Face Wind Speed	0.3-0.5 m/s
Noise Level	<60 dB

Key Features

Work surface: 12.7mm solid core physical/chemical board with acid/alkali resistance, moisture resistance, and high temperature resistance
Operating area constructed from 1.0mm steel plate with one-time bending for durability
5mm thick lining material tested against 100+ chemicals including sulfuric and nitric acids
Rivet-free deflector design ensures even exhaust distribution with no dead angles
Stepless balance sliding glass door (5mm tempered glass) with maximum opening of 720mm
Natural air supply outlet above window door
12W fluorescent lamp illumination

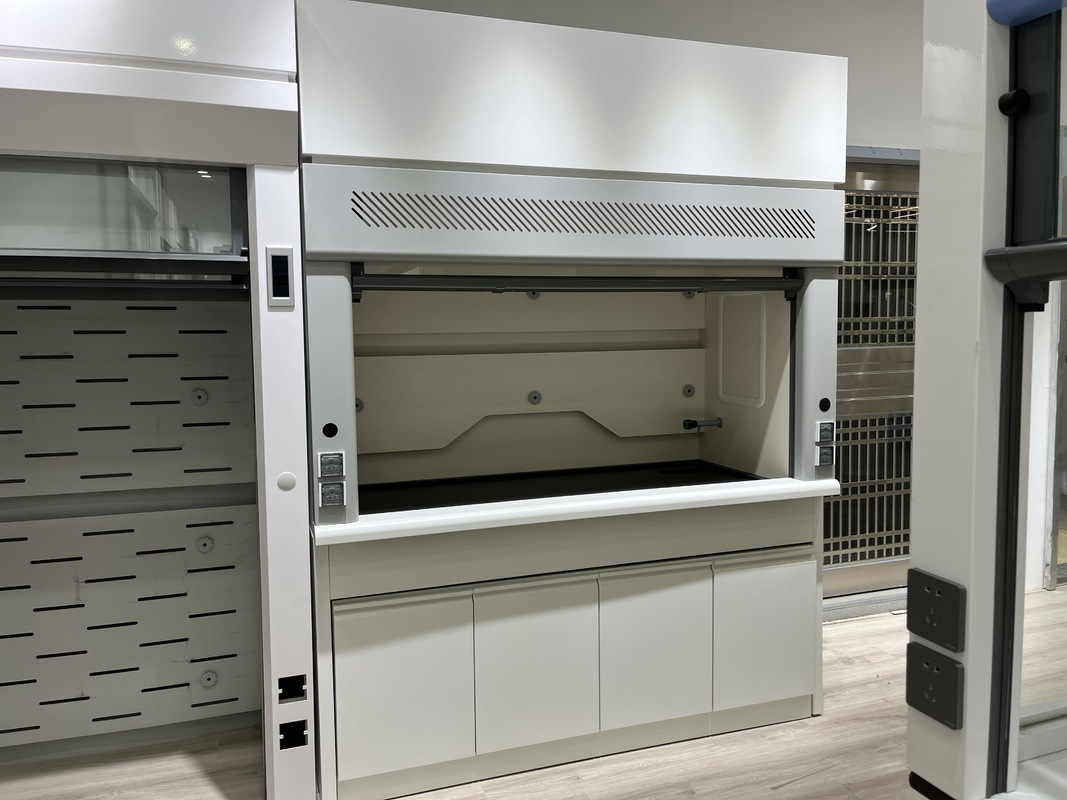

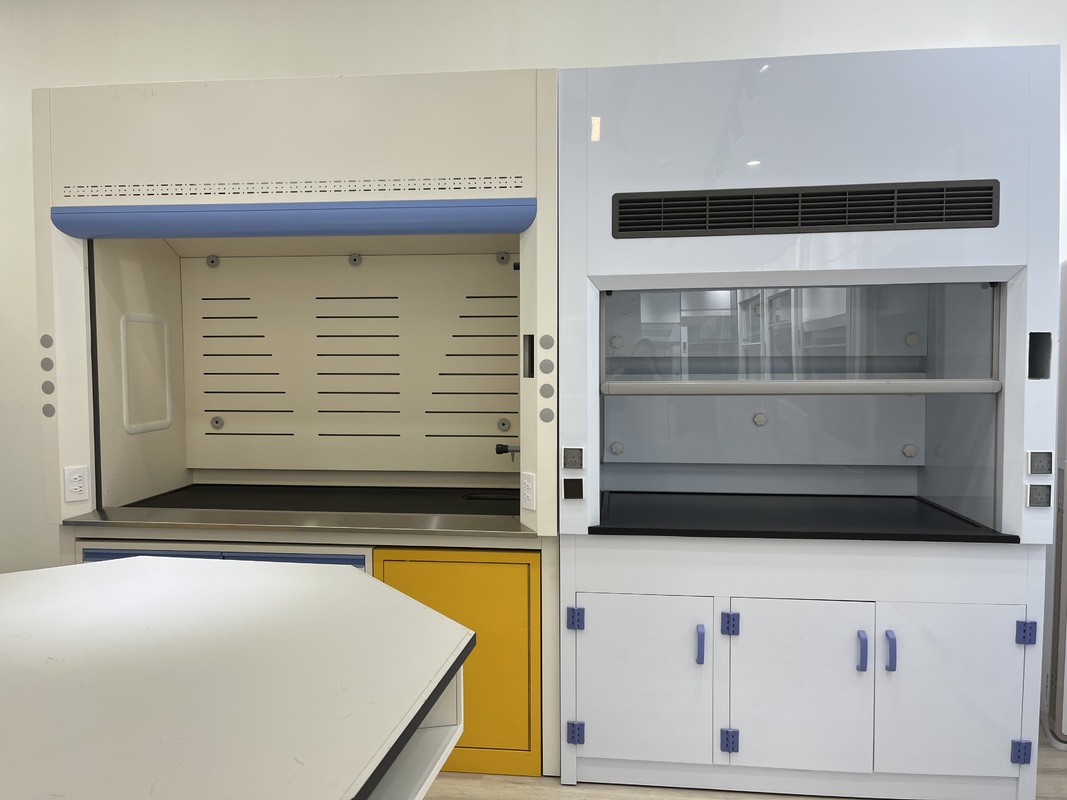

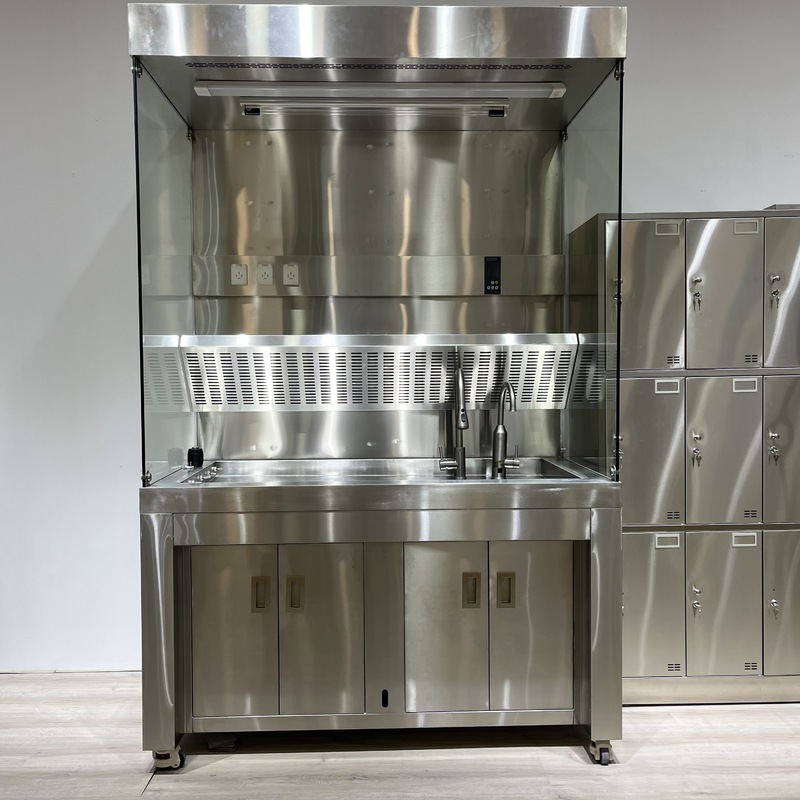

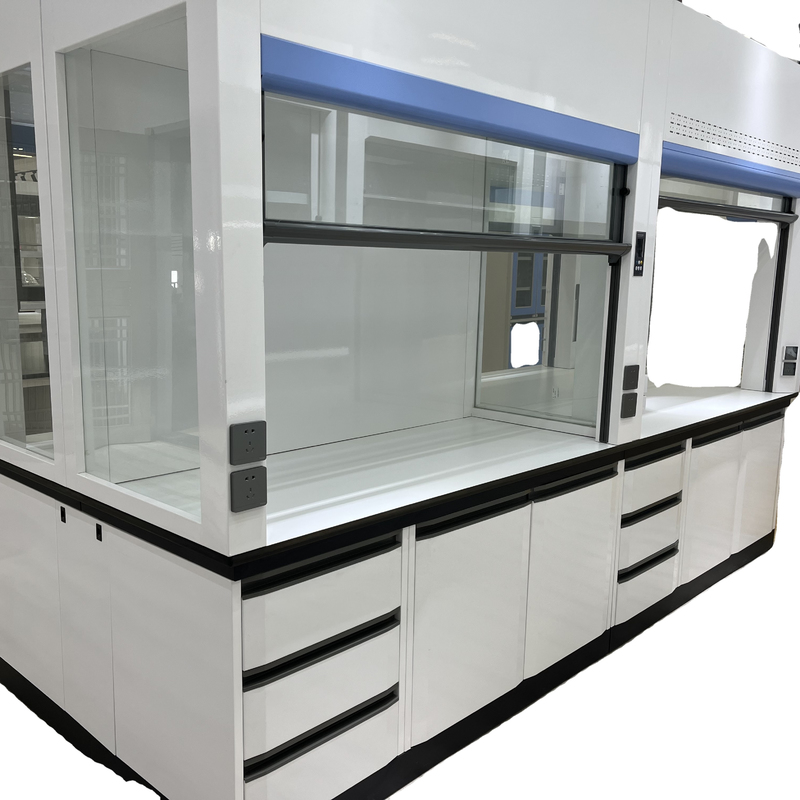

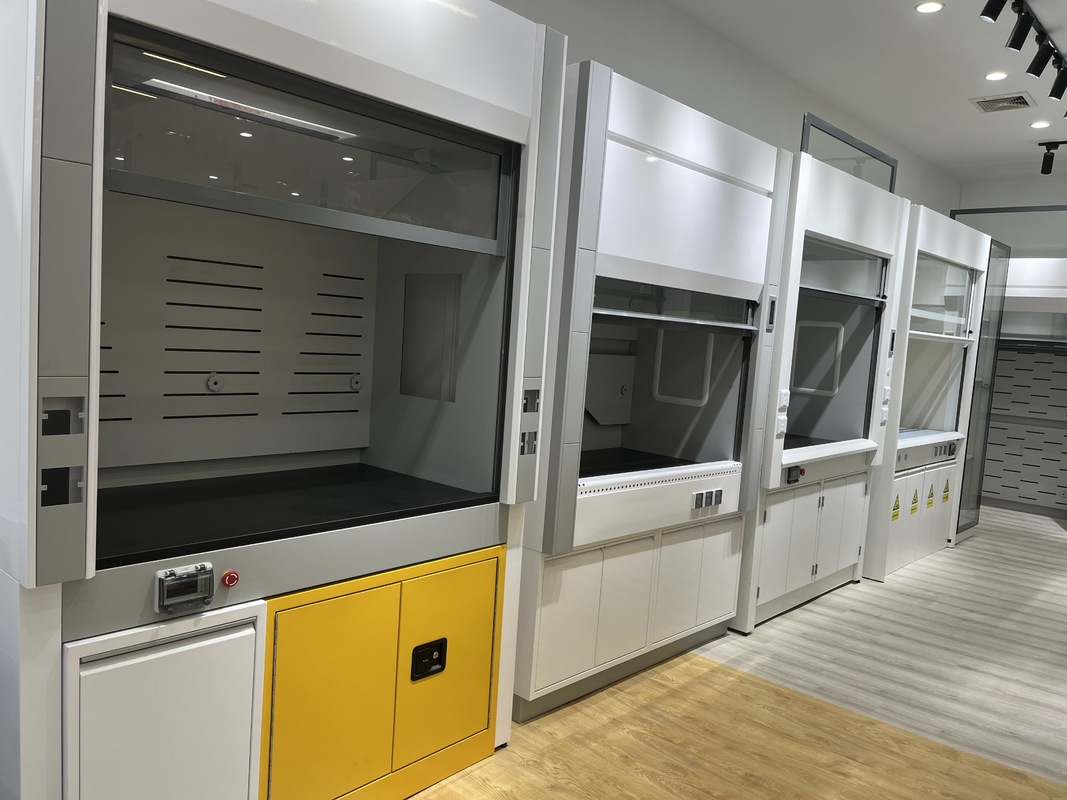

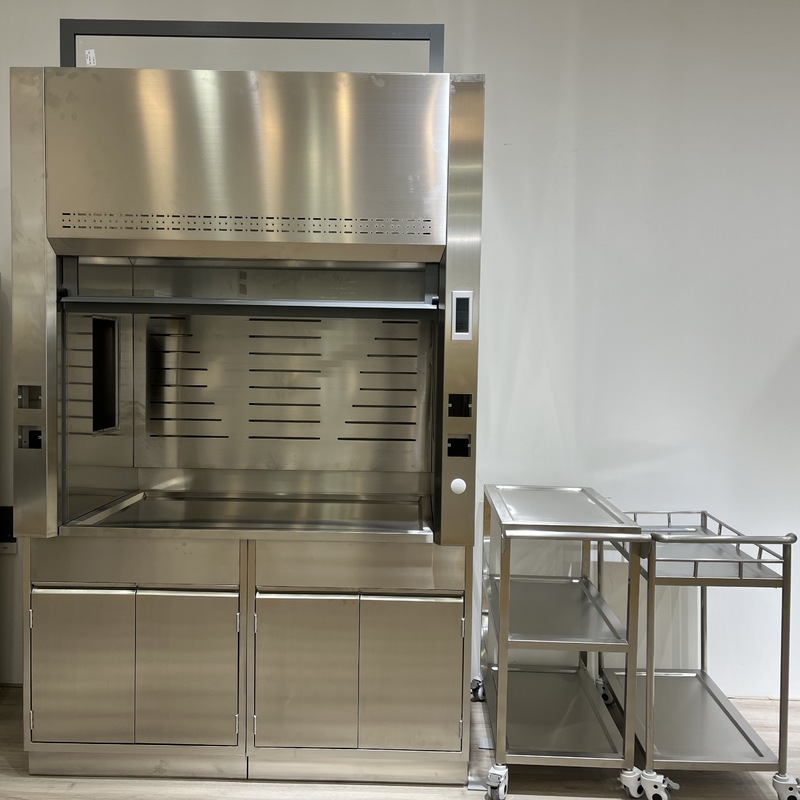

Product Images

Additional Models

Packing & Shipping

About Guangdong Zhijian Experimental Equipment Technology Co., Ltd.

We are an engineering company specializing in laboratory construction planning, design, production, and after-sales services. Since our establishment, we have been committed to the design and manufacture of laboratory equipment, adhering to modern European and American laboratory design concepts.

Our products combine durability, functionality, flexibility, and safety, and have been successfully exported to laboratories in over 20 countries and regions, including universities, hospitals, chemical companies, and research institutions.

Frequently Asked Questions

Why choose us?

Own factory with ISO14001, ISO45001, and ISO9001 certifications
Quality assurance with 24-hour service
Professional team with experience since 2014
One-stop laboratory equipment procurement
Custom solutions and professional advice

Can I visit your factory?

Yes, we welcome visits to our factory located in Guangzhou, China - an important international business center and transportation hub.

Do you provide samples?

We are happy to supply sample blocks for evaluation.

Can I customize colors and sizes?

Yes, you can choose any color and we can customize sizes according to your requirements.

What is your quality assurance?

All products are made from high-quality materials and undergo rigorous testing. Our experienced workforce ensures consistent quality.
